Products
Painting Hose

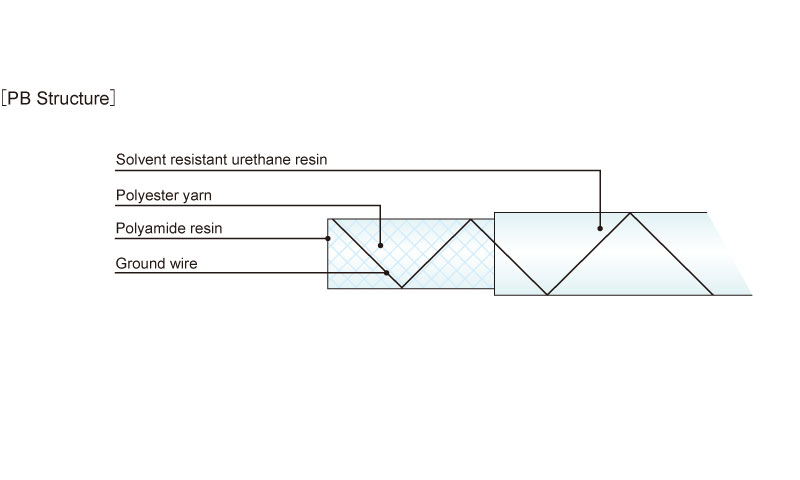

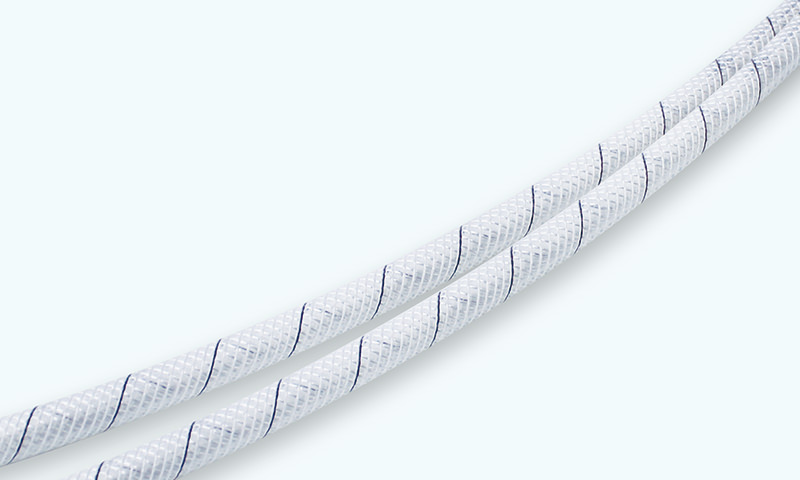

Sun Paint Hose(FUB-easy)(PB-with a ground wire)
With the use of polyamide resin, the solvent resistance is significantly improved compared to conventional painting hoses.
- Material
- Polyamide/Polyurethane resin product
- Usage
- For piping of paints and solvents
- Features
- Superior in flexibility and pressure resistance, this hose will improve the workability.
- Fluids
-
Paints
Solvents
Specifications:Working temperature limit: Between -20℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| PB-7 | 6.5 | 10.0 | 100 | 1.5 | 35 | 5.7 |
